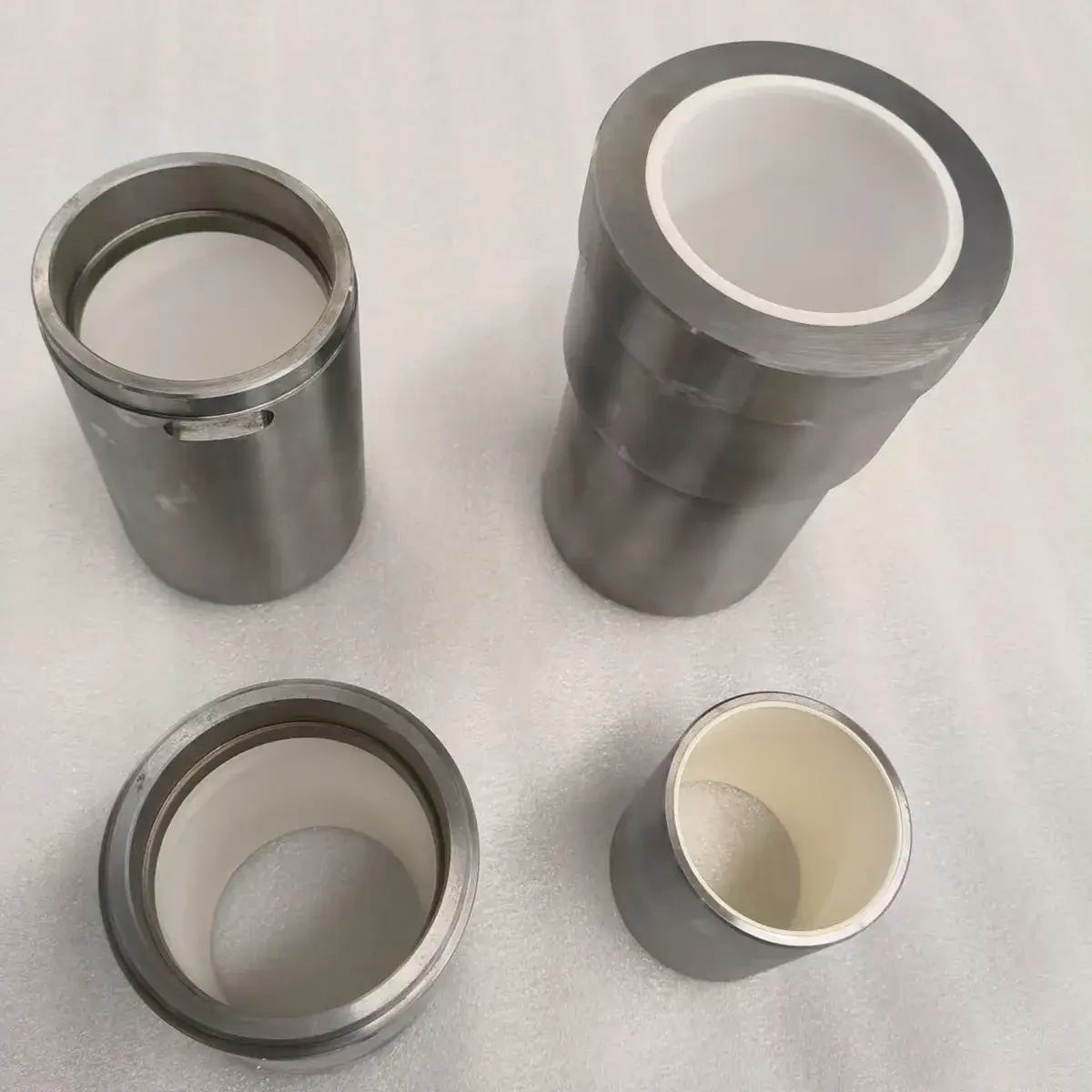

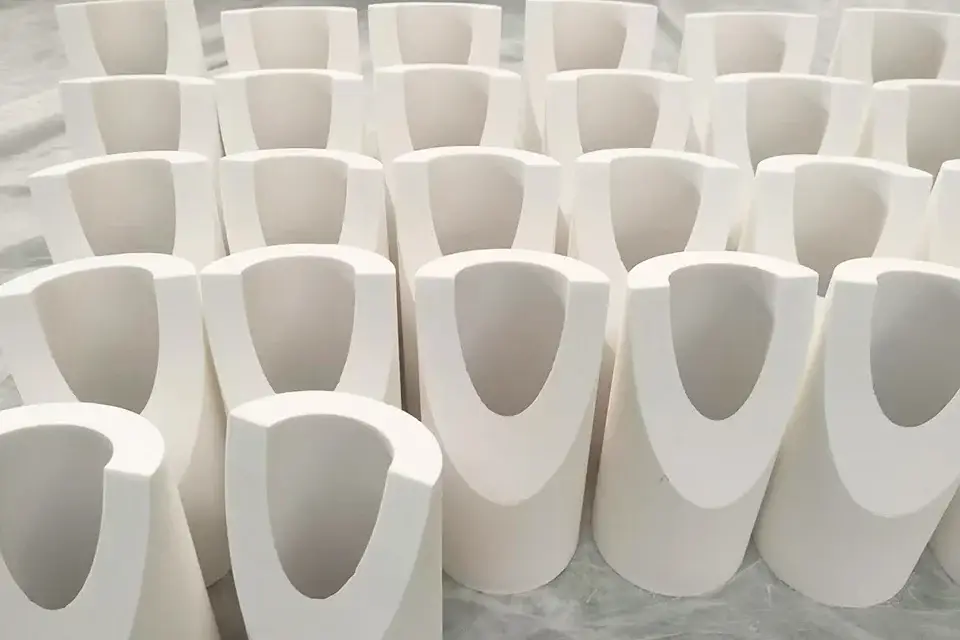

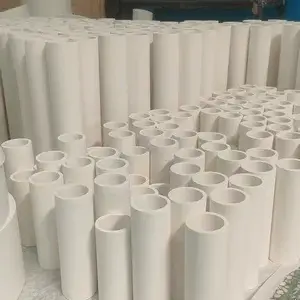

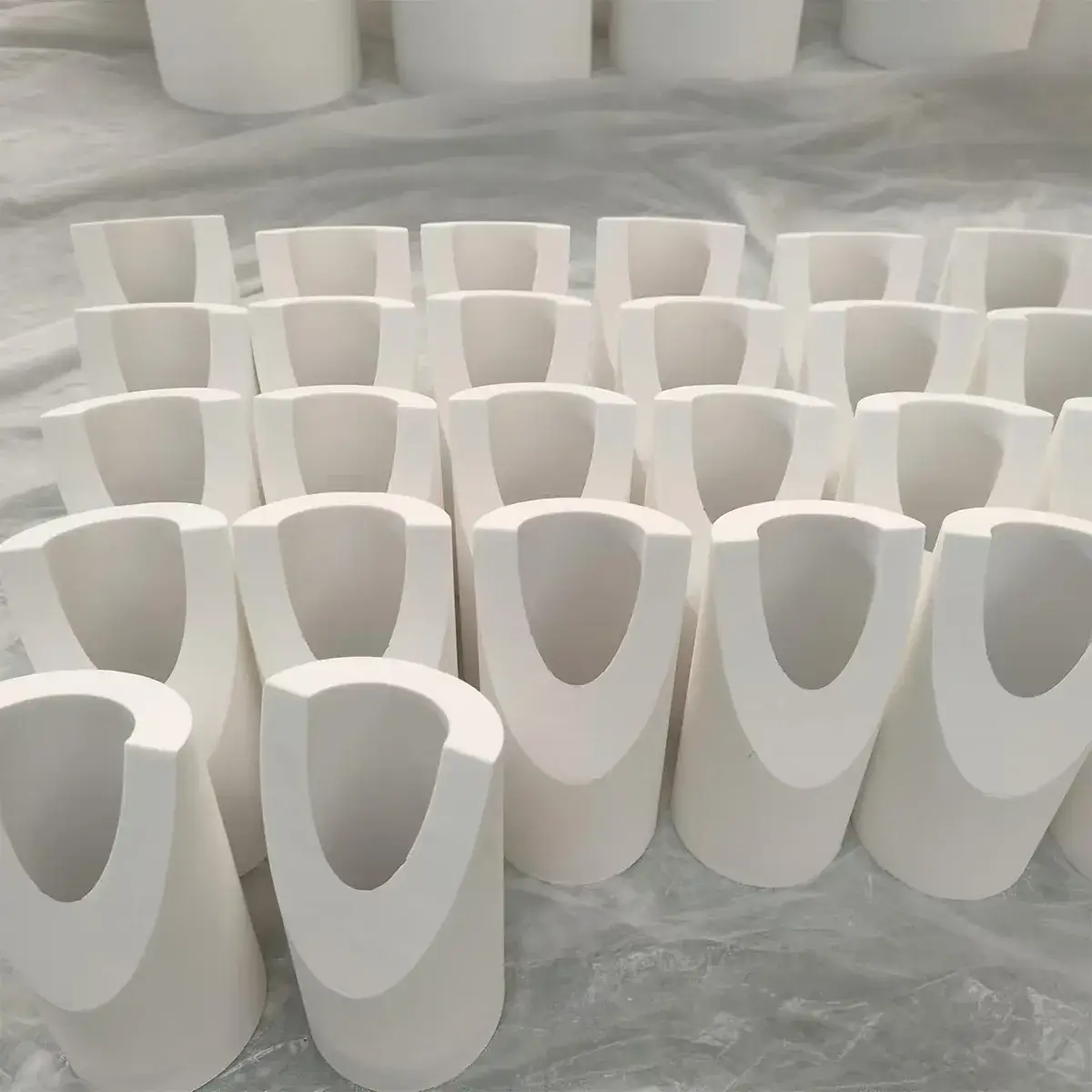

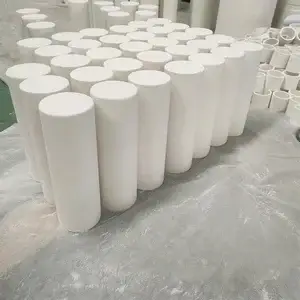

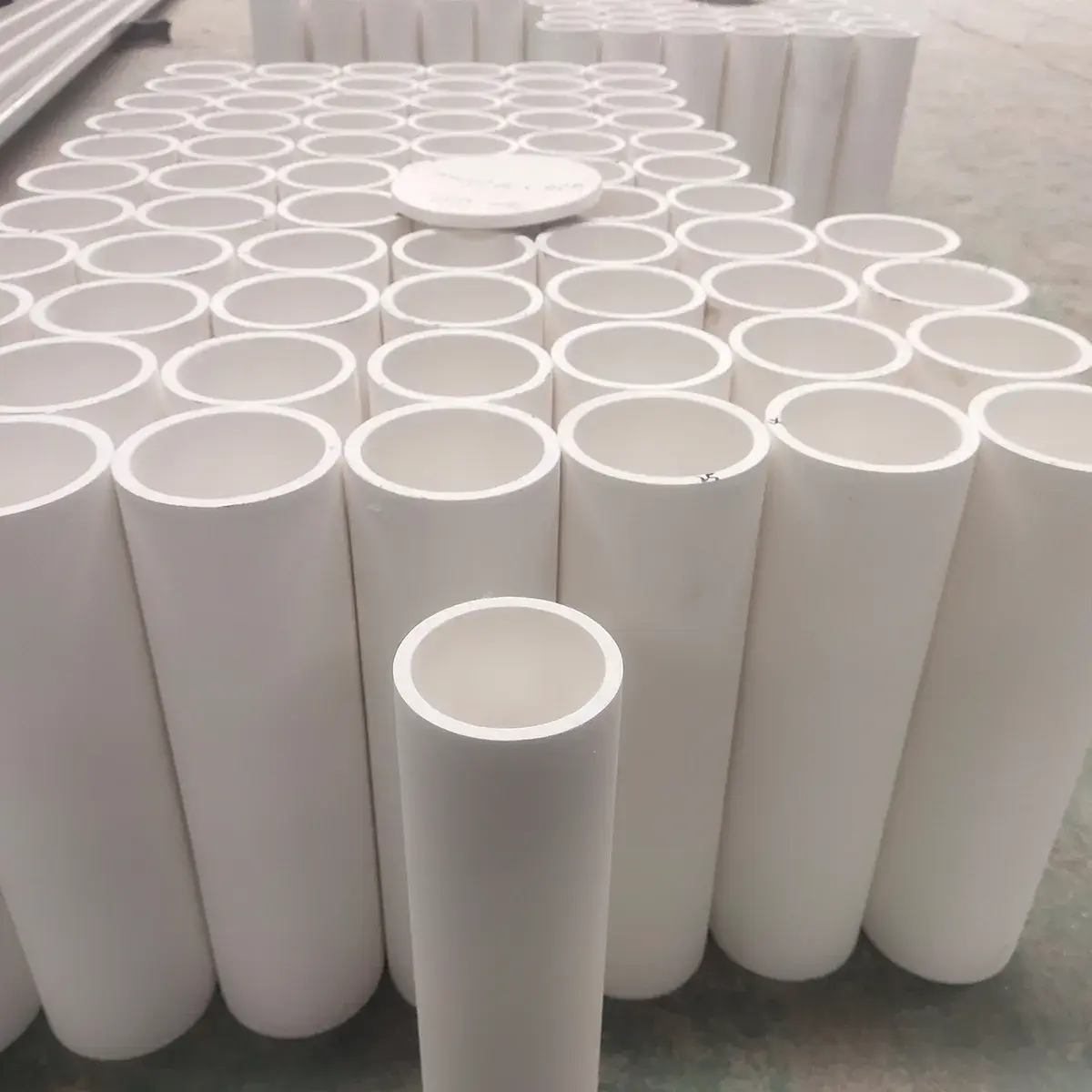

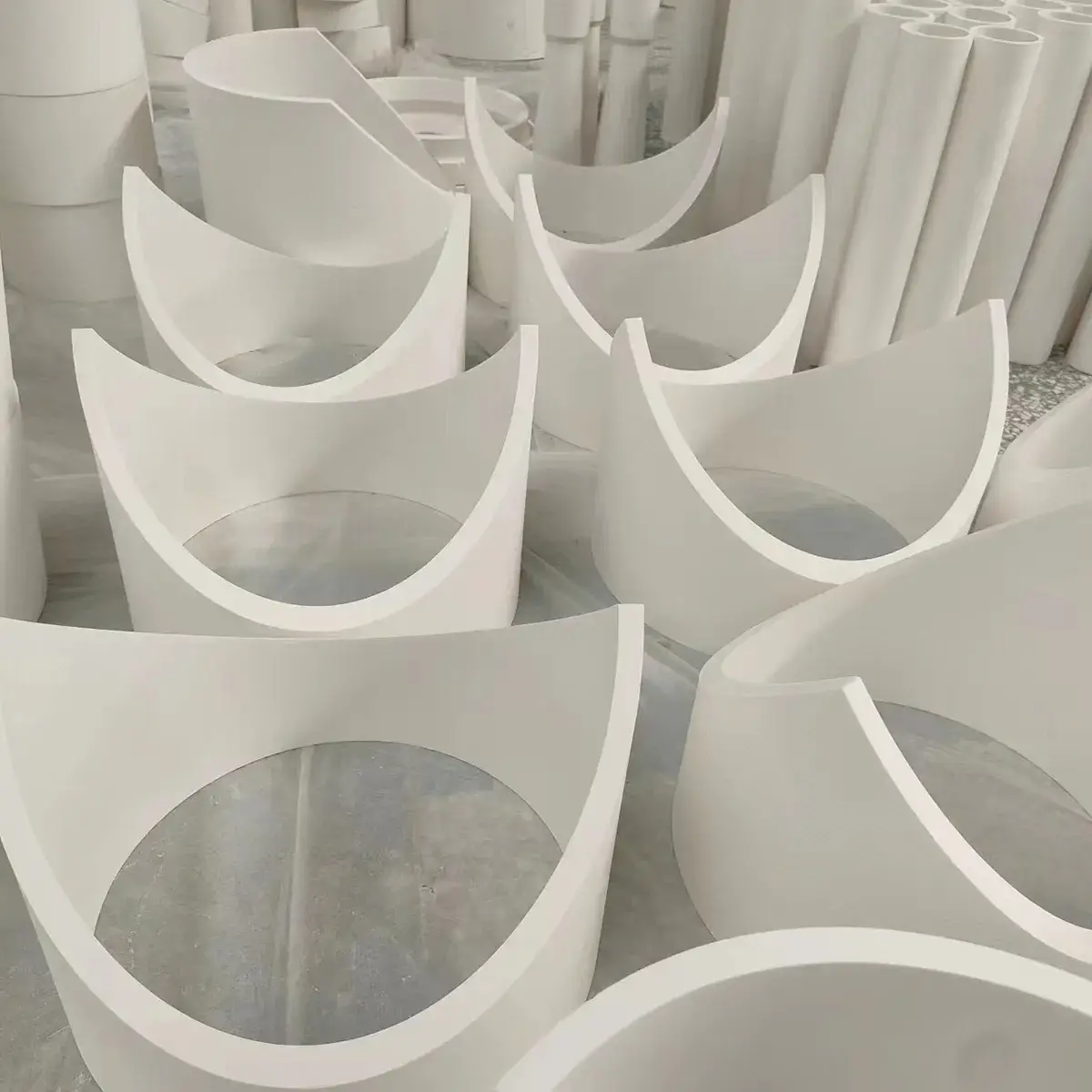

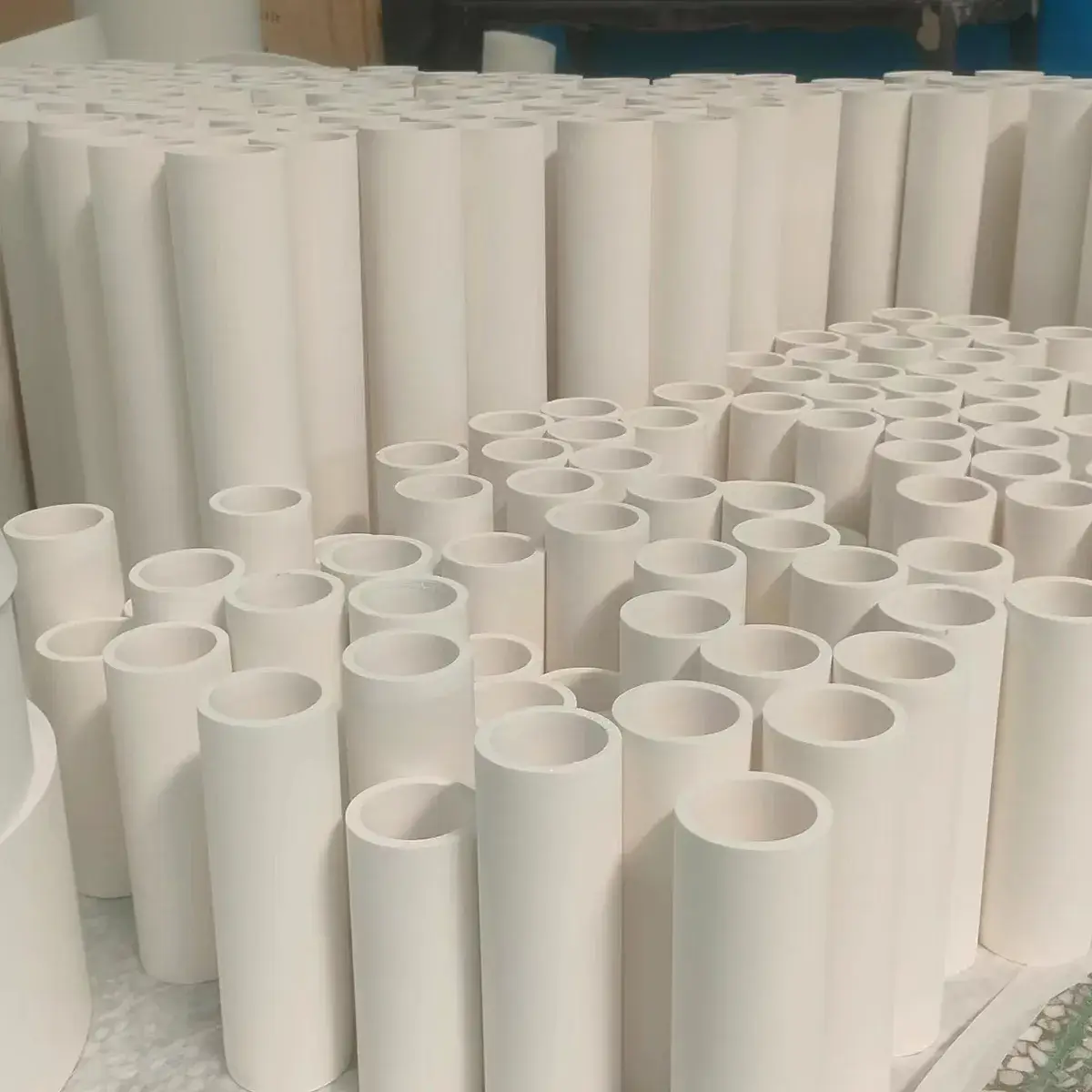

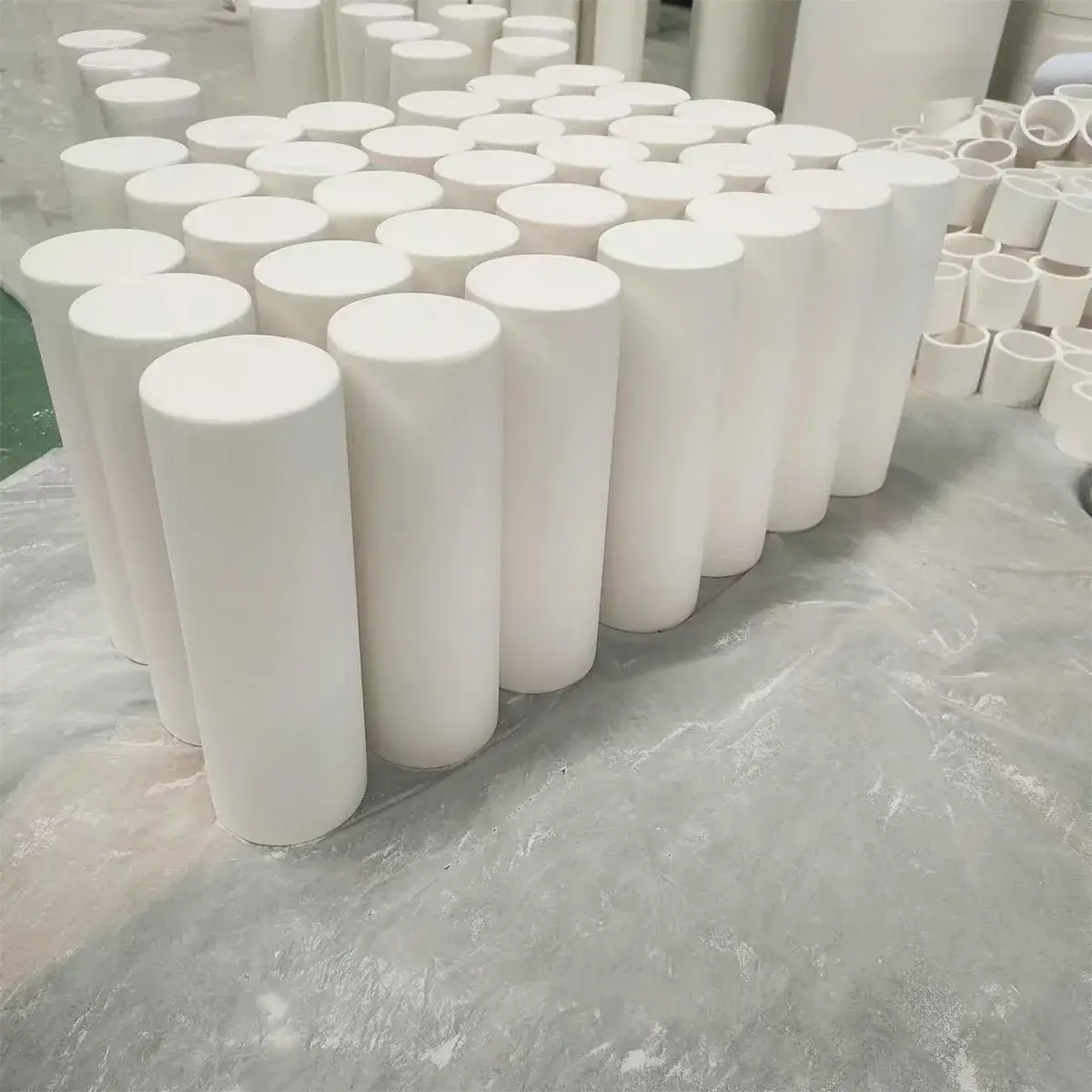

Ceramic Pipe Liners (Ceramic Cylinder Liners)
Performance Features
- High wear resistance: Ceramic materials feature high hardness, significantly reducing maintenance and replacement frequency in harsh operating conditions such as drilling and mining.
- High temperature resistance: Capable of stable operation at elevated temperatures, withstanding hot gas erosion and thermal radiation.
- Excellent corrosion resistance: Ceramics exhibit strong chemical stability and high resistance to acids, alkalis, and salts, making them widely applicable in industries including chemical and petroleum.
- Low coefficient of thermal expansion: Minimal dimensional change under temperature fluctuations ensures precise clearance between the liner and piston, reducing fuel or gas leakage and improving operational efficiency.
Watch Videos
Standard Specifications
(The following specifications are standard options. Custom manufacturing is available based on customer drawings.)
| Steel pipe outer diameter (mm) | Steel pipe thickness (mm) | Ceramic inner diameter (mm) | Ceramic thickness (mm) | Flange specification |
|---|---|---|---|---|
| |
2 | 34 | 4 | DN40 |
| |
2 | 40 | 4.5 | DN40/DN50 |
| |
2 | 48.5 | 4 | DN50 |
| |
3 | 50 | 5 | DN50 |
| |
3 | 50 | 7 | DN65 |
| |
2 | 55 | 5 | DN65 |
| |
3 | 62 | 5 | DN65 |
| |
3 | 65 | 6 | DN65/DN80 |
| |
3 | 68 | 5 | DN80 |
| |
3 | 70 | 5 | DN80 |
| |
3 | 76 | 7 | DN80/DN100 |
| |
3 | 80 | 6 | DN80/DN100 |
| |
4 | 80 | 6 | DN80/DN100 |
| |
3 | 90 | 6 | DN80/DN100 |
| |
4 | 100 | 6 | DN100/DN125 |
| |
3 | 125 | 8 | DN125/DN150 |
| |
4 | 125 | 8 | DN125/DN150 |
| |
3 | 150 | 9 | DN150 |
| |
4 | 180 | 11 | DN200 |
| |
5 | 200 | 13 | DN200/DN250 |
| |
4 | 210 | 10 | DN200/DN250 |
| |
5 | 250 | 13 | DN250 |
| |
6 | 300 | 13 | DN300 |
| |
6 | 350 | 15 | DN350 |
| |
6 | 400 | 15 | DN400 |
| |
8 | 450 | 20 | DN450 |
| |
8 | 500 | 20 | DN500 |
Length (L) = 100-3000mm, customizable
Steel pipe and flange materials: SUS304/SUS316/Q235
Flange types: Fixed/lap joint/non-standard
Steel pipe and flange materials: SUS304/SUS316/Q235
Flange types: Fixed/lap joint/non-standard
Ceramic liner materials:
92% ceramic (Al₂O₃ content ≥92%, white)
95% ceramic (Al₂O₃ content ≥95%, off-white)
99% ceramic (Al₂O₃ content ≥99%, light yellow)
92% ceramic (Al₂O₃ content ≥92%, white)
95% ceramic (Al₂O₃ content ≥95%, off-white)
99% ceramic (Al₂O₃ content ≥99%, light yellow)
External surface treatment: Sandblasting using quartz sand/polishing/anti-corrosion painting
Outer surface treatment of the feed pipe (insert pipe inside the hopper): ETFE coating spray/alumina ceramic coating
Outer surface treatment of the feed pipe (insert pipe inside the hopper): ETFE coating spray/alumina ceramic coating
