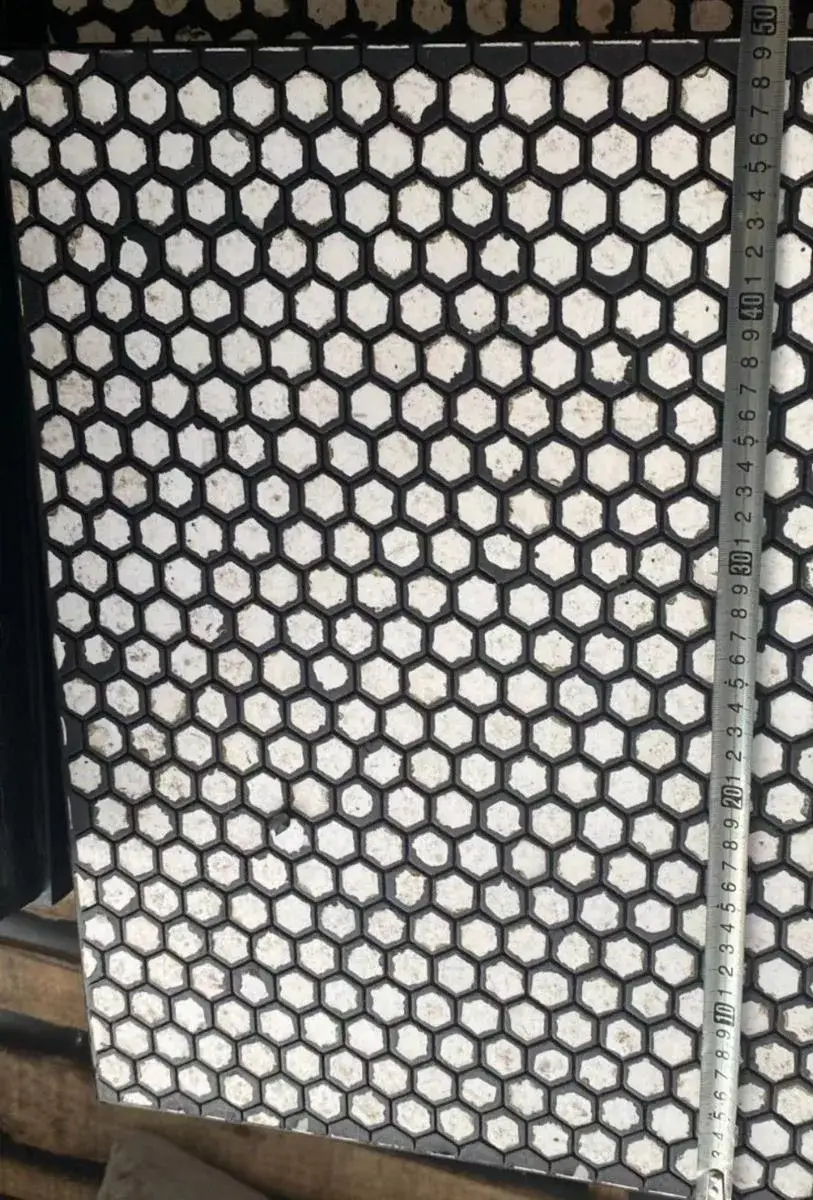

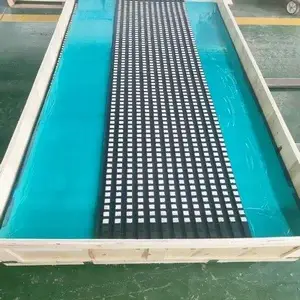

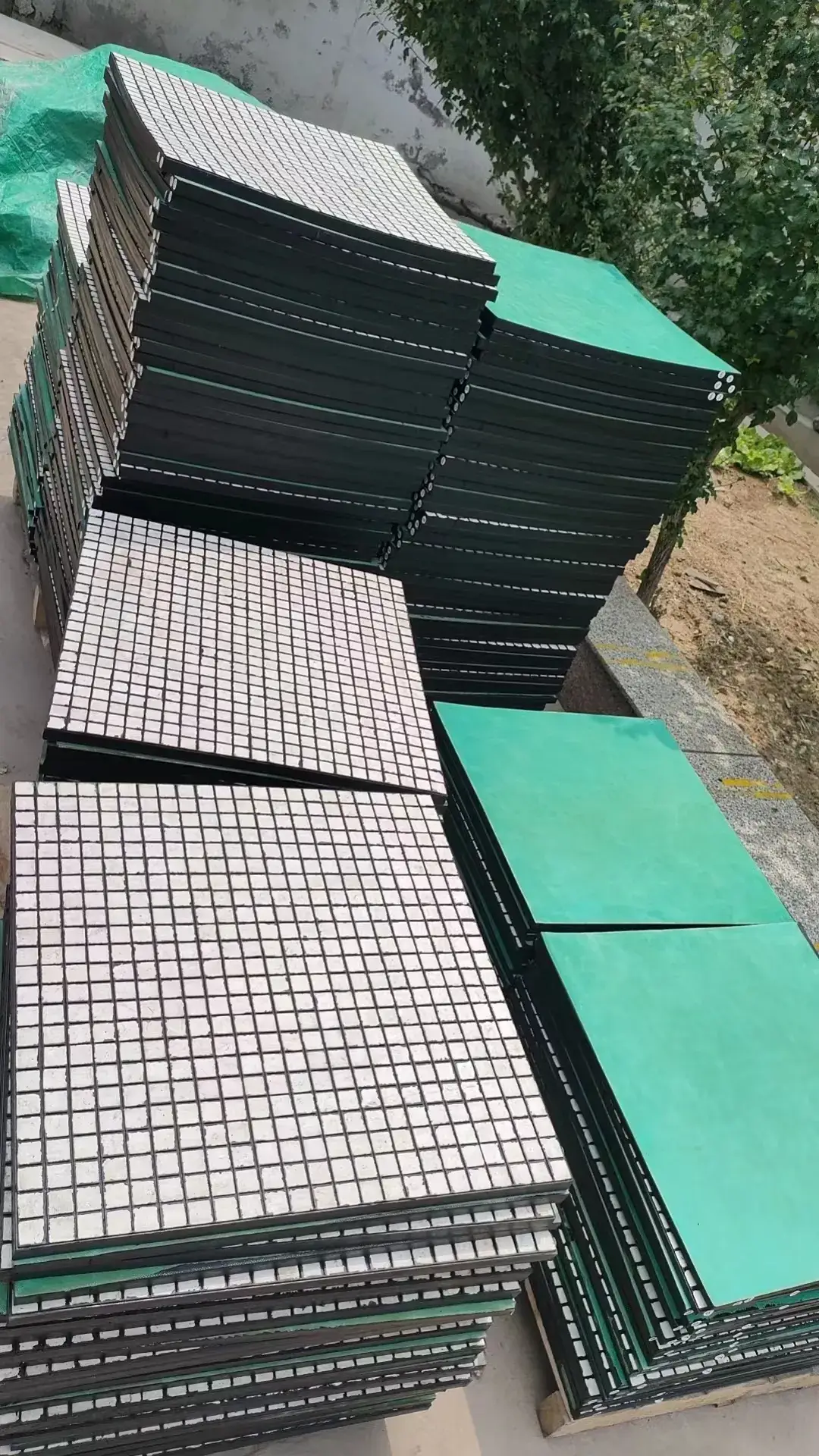

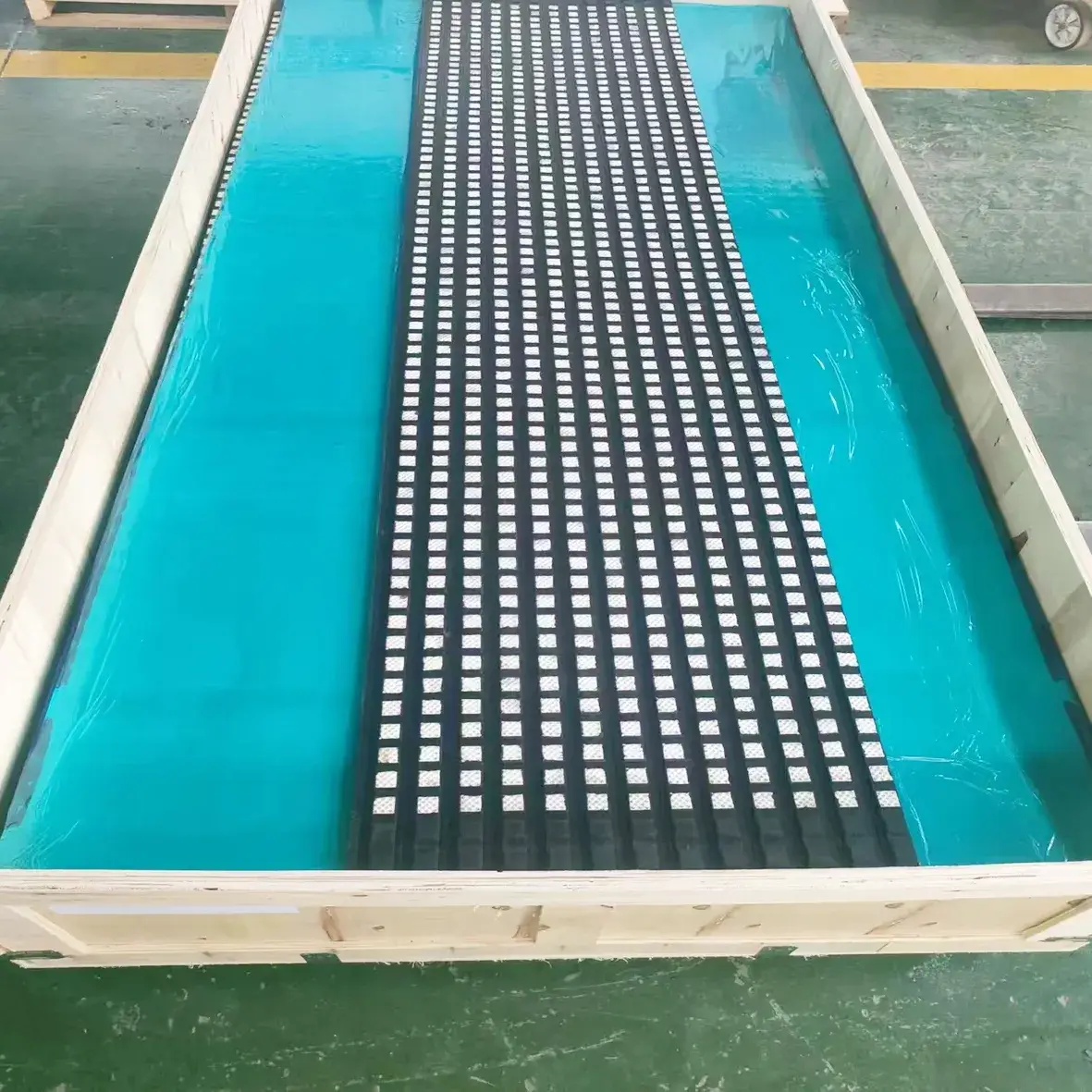

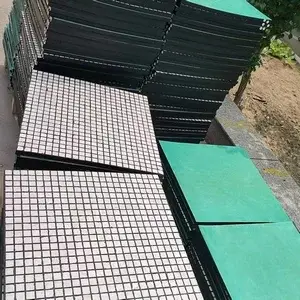

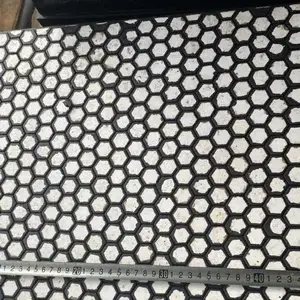

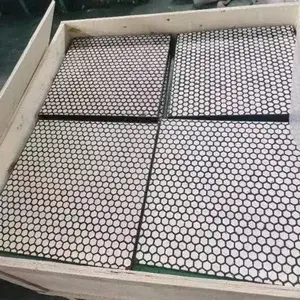

Composite Ceramic Wear Liners (Ceramic Wear Pads)

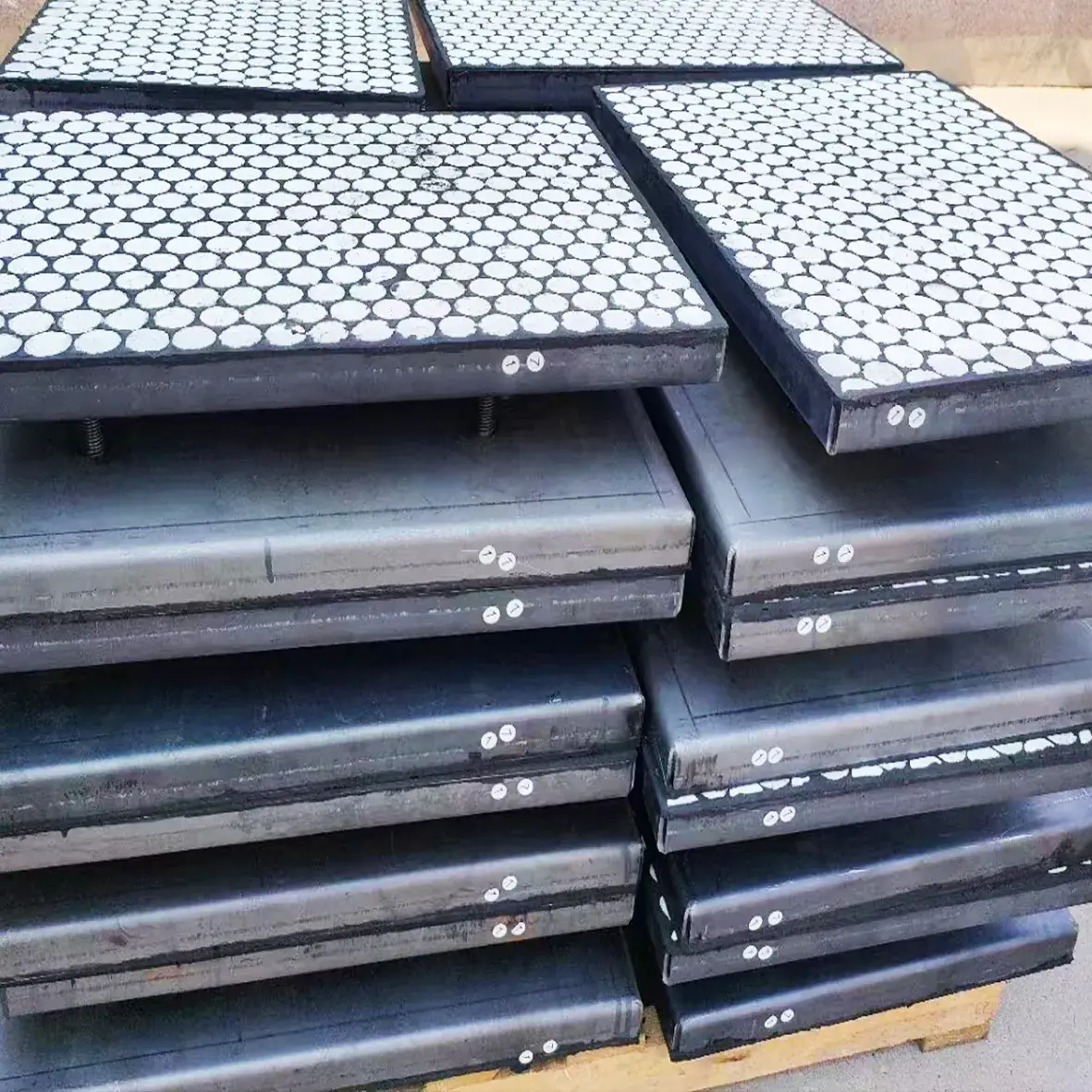

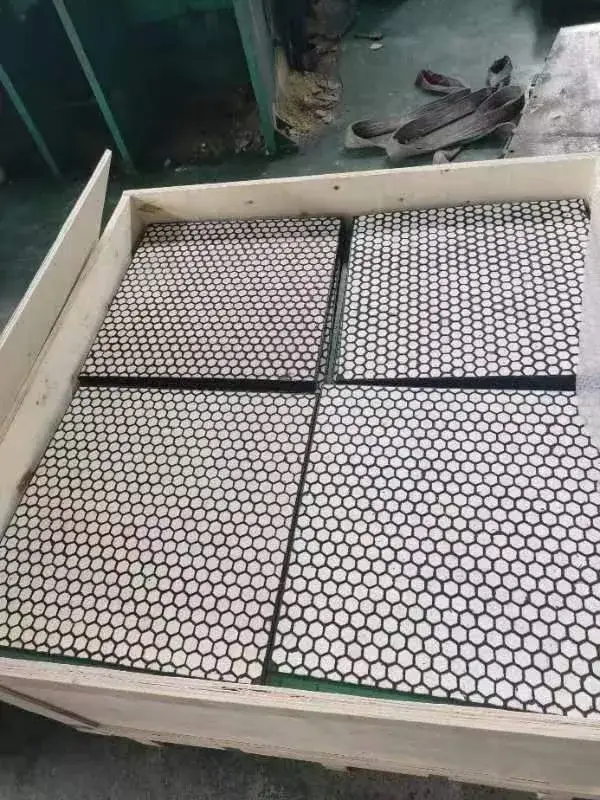

Composite ceramic wear liners are available in three configurations: ceramic liners, dual-layer composite liners (ceramic + rubber, ceramic + steel), and triple-layer composite liners (ceramic + rubber + steel).

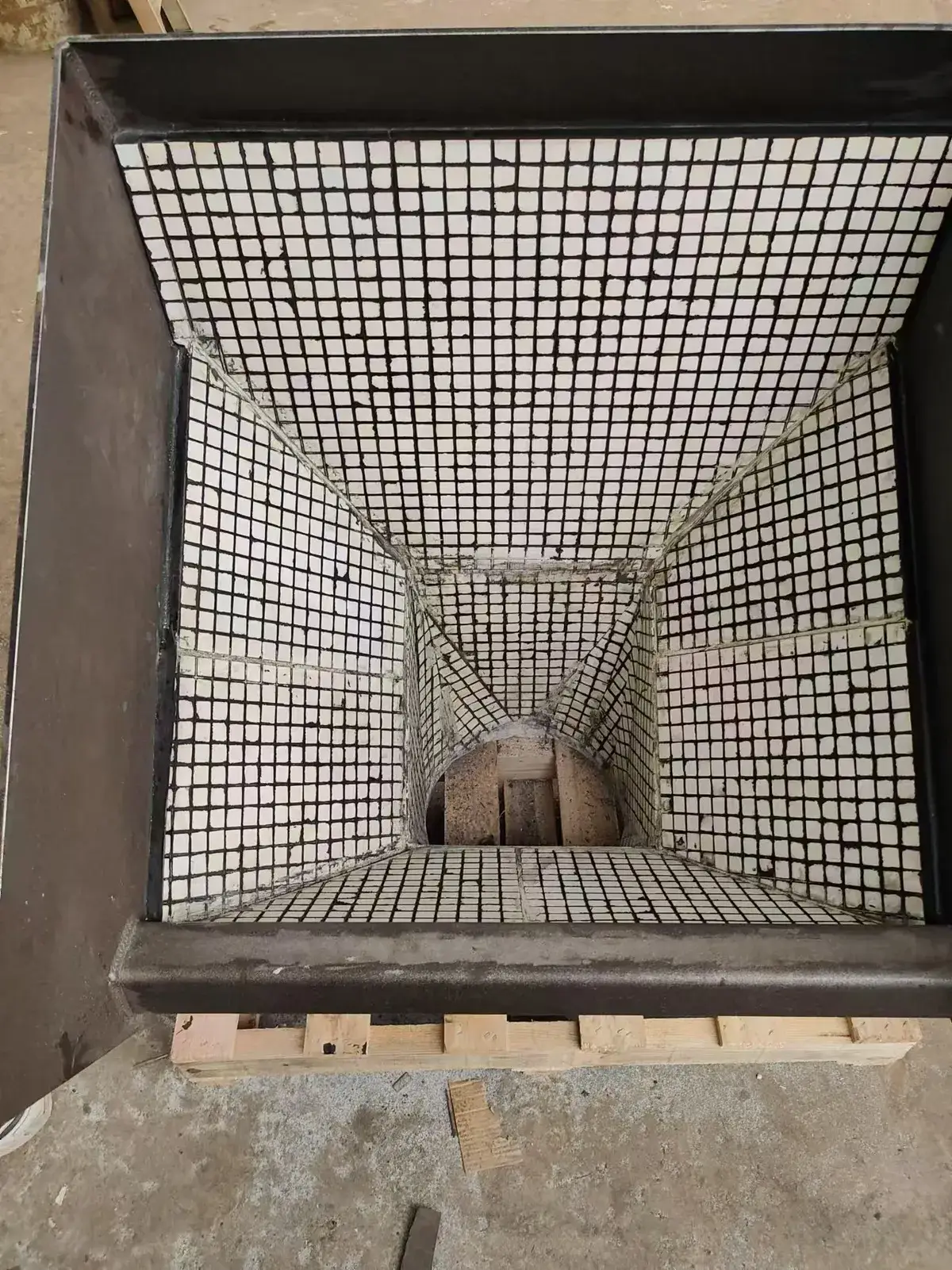

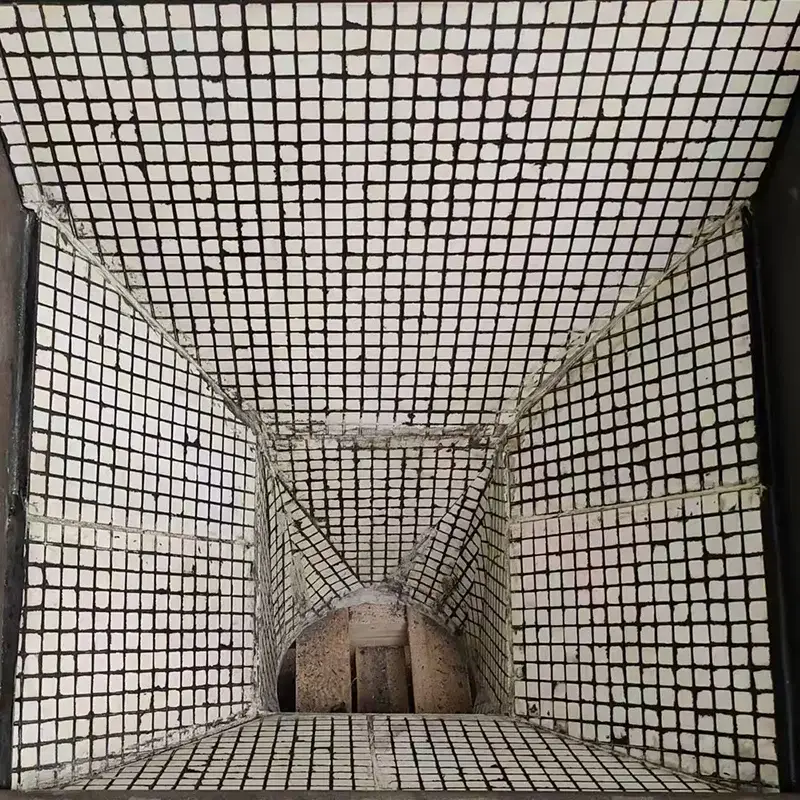

They are widely used for wear protection of equipment such as bunkers, hoppers, and chutes in coal conveying systems, ash handling systems, and material conveying and batching systems.
Applications
- Mining industry: liners for ore conveyor systems, crushers, grinding mills, and screening equipment.
- Power industry: liners for pulverized coal pipelines and ash handling equipment.
- Steel and metallurgical industry: liners for furnaces, smelting furnaces, ladles, bins, and related equipment.
- Chemical industry: liners for chemical reactors, pipelines, pumps, and valves.
- Cement industry: liners for mills, rotary kilns, and other equipment in cement production.
Watch Videos
Material Specifications
Rubber Specifications
| Rubber type | |
|
|
|
|
| Operating temperature | -20℃-110℃ | -20℃-200℃ | -50℃-80℃ | -50℃-150℃ | -60℃~200℃ |
| Operating pressure | PN≤16MPa | PN≤16MPa | Not specified | < 2.5MPa | < 3.0MPa |
| Hardness | Shore A 60-90 | Shore A 70-90 | Shore A 50-70 | Shore A 60-80 | Shore A 50-70 |
| Tensile strength | 10-20MPa | 15-25MPa | 15-25MPa | 8-15MPa | 4-10MPa |
| Elongation at break | 200%-600% | 150%-300% | 500%-800% | 200%-500% | 200%-600% |
| Aging resistance | Good | Excellent | Fair | Excellent | Excellent |
| Oil resistance | Excellent | Excellent | Poor | Moderate | Poor |
| Acid and alkali resistance | Moderate | Excellent | Moderate | Excellent | Moderate |
